      How To Auto Provision a Grandstream HT801/HT802

      A quick summary of the settings needed to provision a Grandstream HT801/802.

      1. Add the device to the Platform and set a Line.

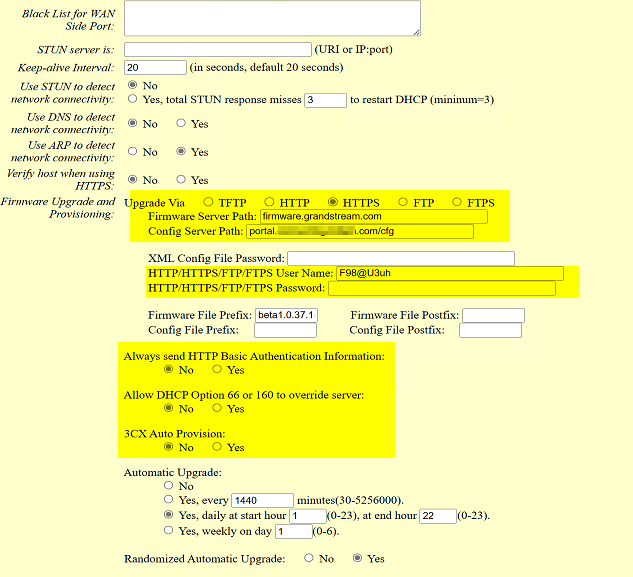

      2. Log into the web interface of the ATA and go to the "Advanced" page (pictured above).
      3. Set "config server path" to <YOUR_FQDN>/cfg, Be sure to remove HTTPS/ HTTP from the beginning.
      4. Set "Upgrade Via" to HTTPS or HTTP.
      5. Set HTTP/HTTPS/FTP/FTPS User Name and Password to one time user/pass.
      6. Set "Allow DHCP option 66..." to: No.
      7. Set "3CX Auto Provision" to: No.
      8. Go to the bottom of the page and click "Update", then when the page loads click "Apply", after which go back into the advanced page and select "Reboot".

      IMPORTANT:  The device is known to be slow to provision, after selecting reboot please give it at least 5 minutes.

      TIP:  If HTTPS doesn't work, try HTTP (and vice versa).
